hand-made external power supply for Hi-MD (English page) recorder SONY MZ-NH1
to achieve 33.5-hour full disk recording (with a microphone, by ATRAC3plus/48kbps) in the field

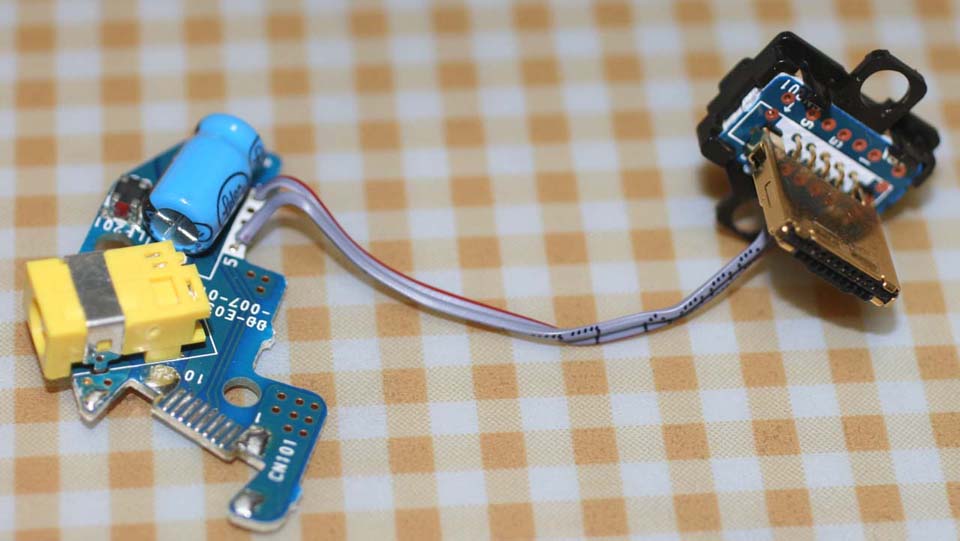

enlarge image/ extract the AC converter connector from the Hi-MD Dock.
And remove the cable with "USB connector" attatched to MZ-NH1.

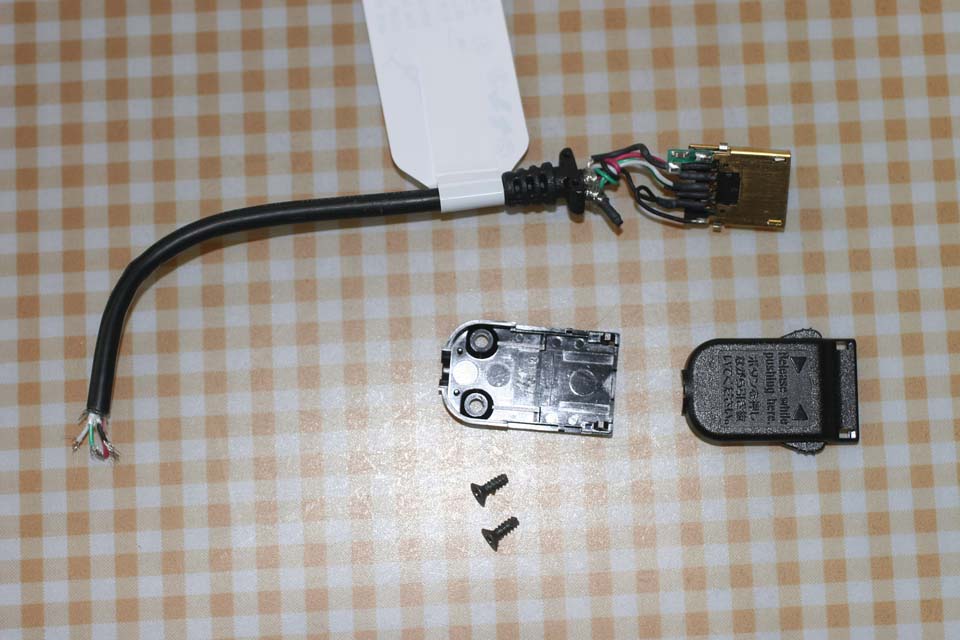

enlarge image/ cut the USB cable attatched to MZ-NH1.
Feel easy, as you have two!
enlarge image/

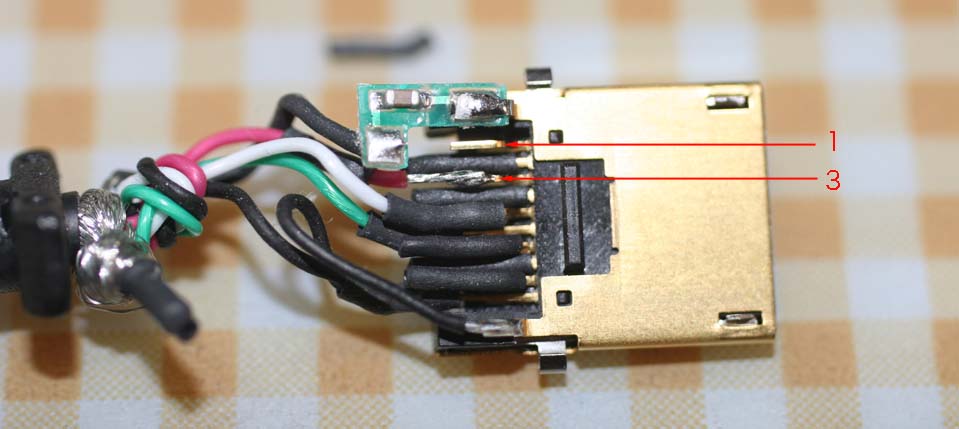

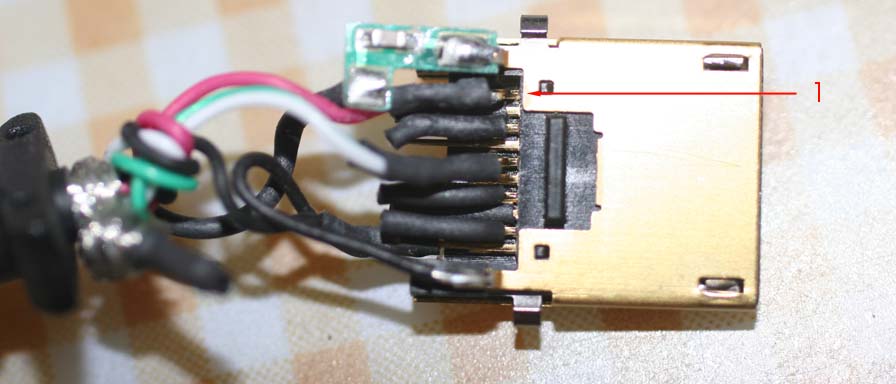

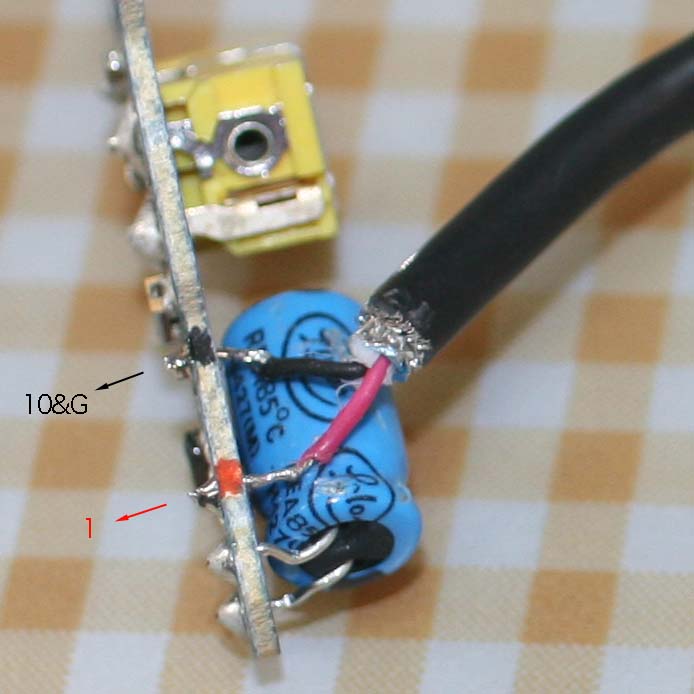

enlarge image/ move plus (red) cable from the terminal 3 to terminal 1.

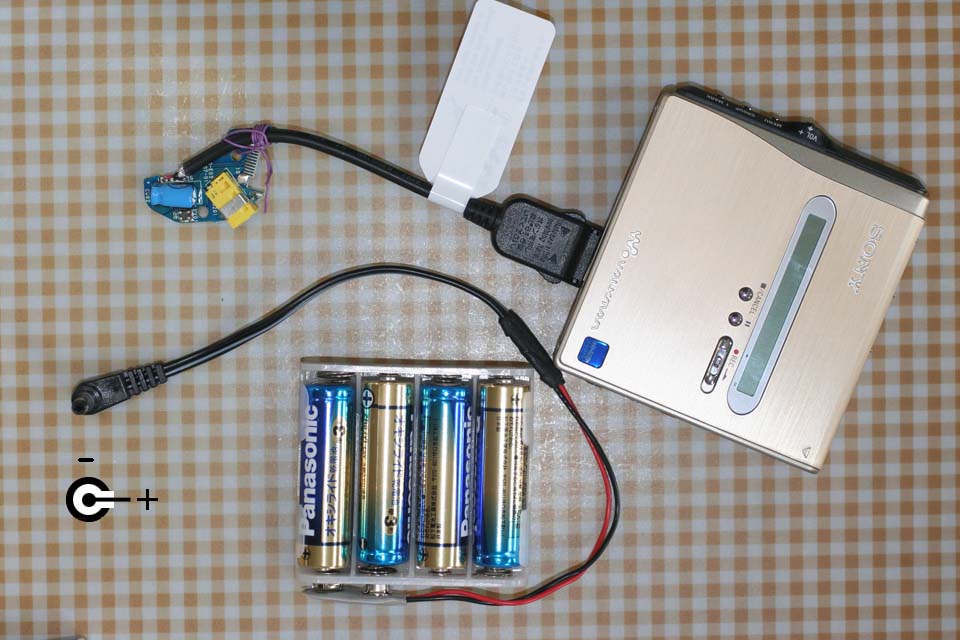

enlarge image/ attatch the new USB connetor and cable to AC connetor.
======================

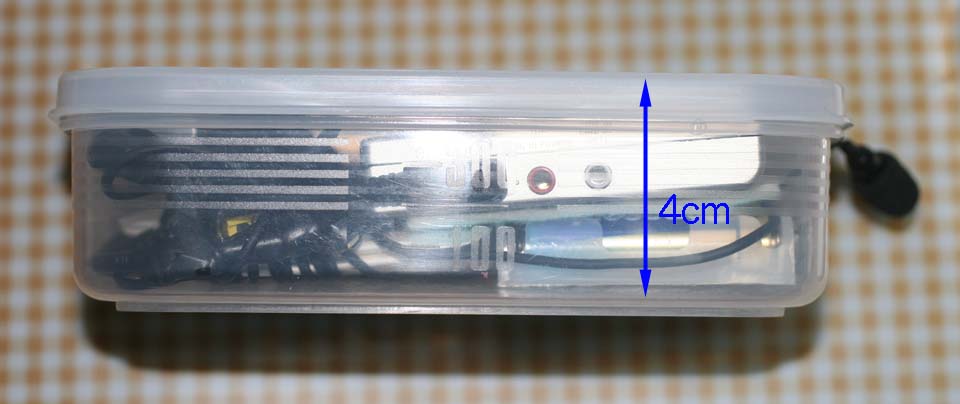

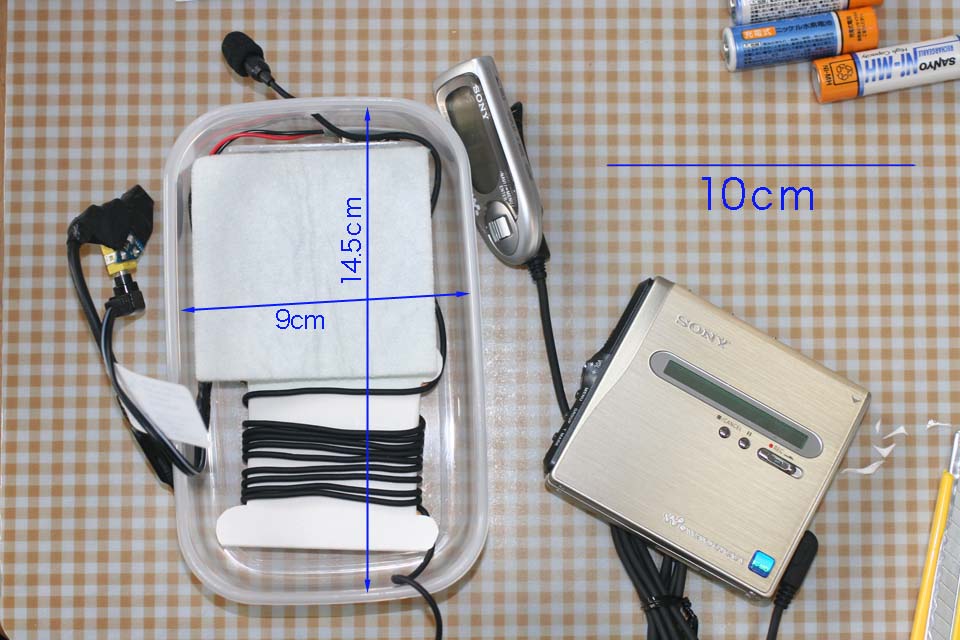

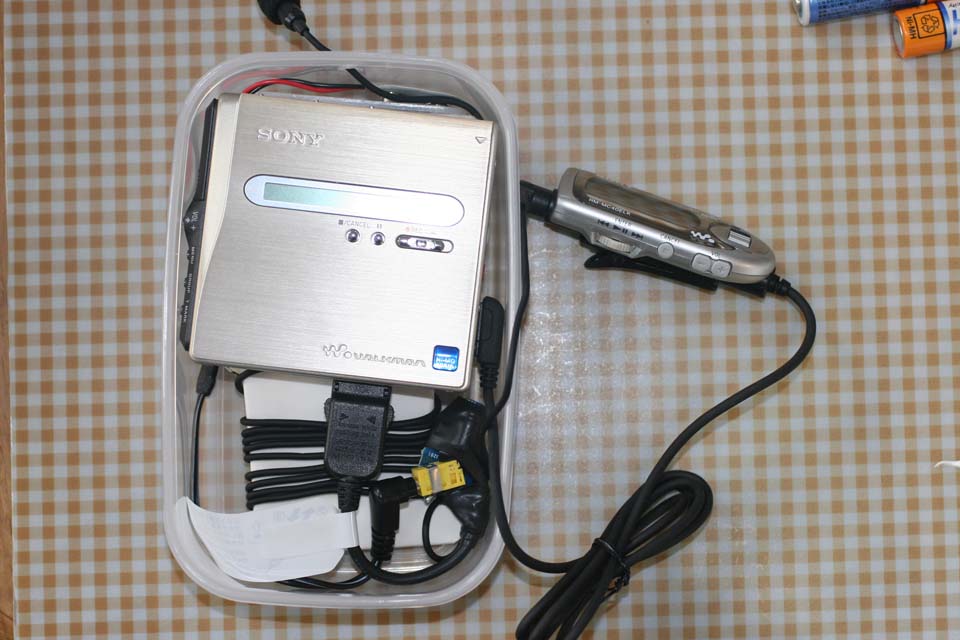

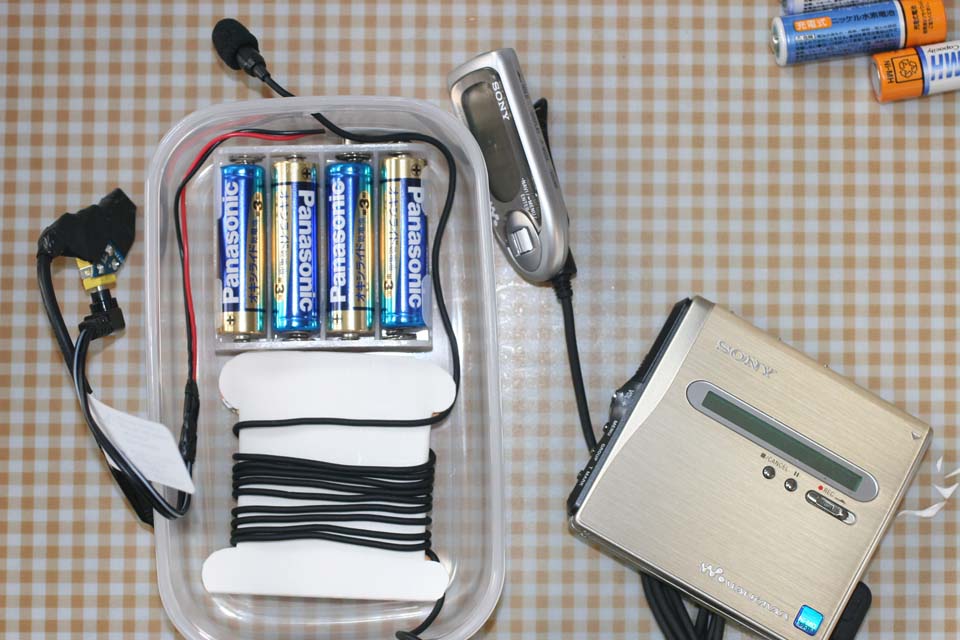

setting of NH1 with a pin-microphone *Audio-technica AT805F(omnidirectional, plug in power) /AT9842 (stereo) and a battery case into a water proof case;
we need to use four new Panasonic 3A oxyride batteries to gain enough voltage to achieve continuous 33.5-hour recording.
I now use MYBATPRO LI_ION rechargaeable batterys (4400mAh, DC 7.2V)

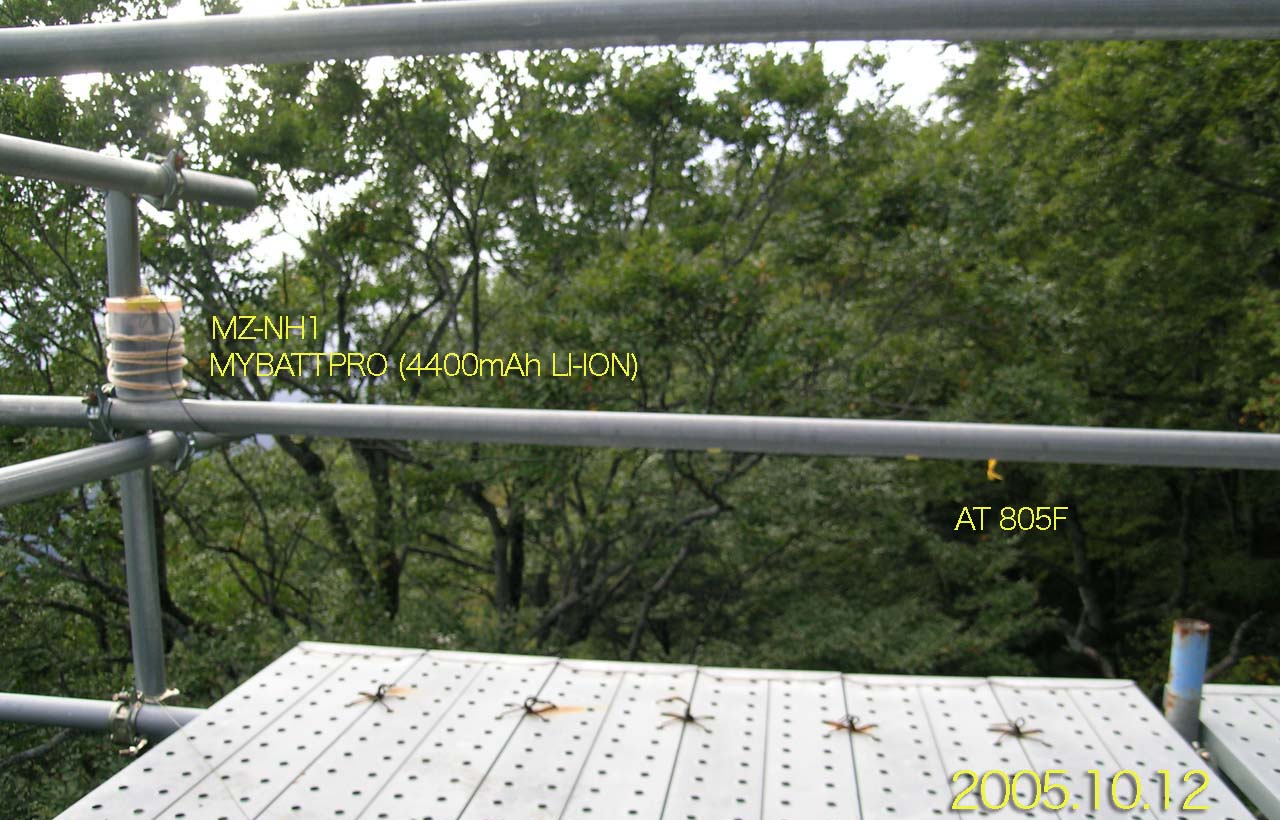

View set on a forest otwer.
